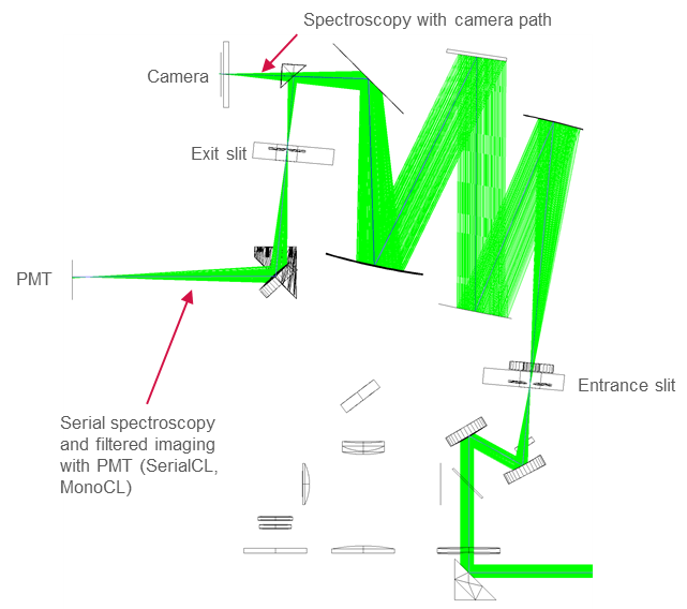

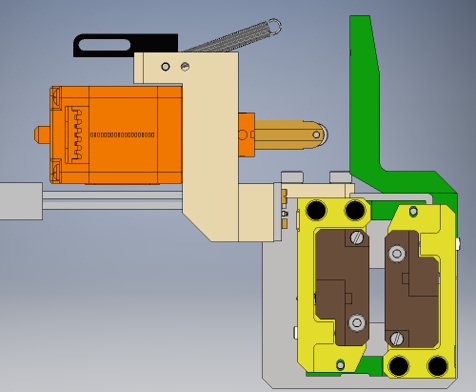

Flexure-Based Slit Mechanism – Opto-Mechanical Design

This project involved the design of a flexure-based precision slit mechanism for optical and imaging applications requiring high stability and repeatability. The system was developed to achieve sub-micron positioning accuracy while eliminating backlash and friction typically associated with conventional mechanical assemblies.

Engineering Challenge

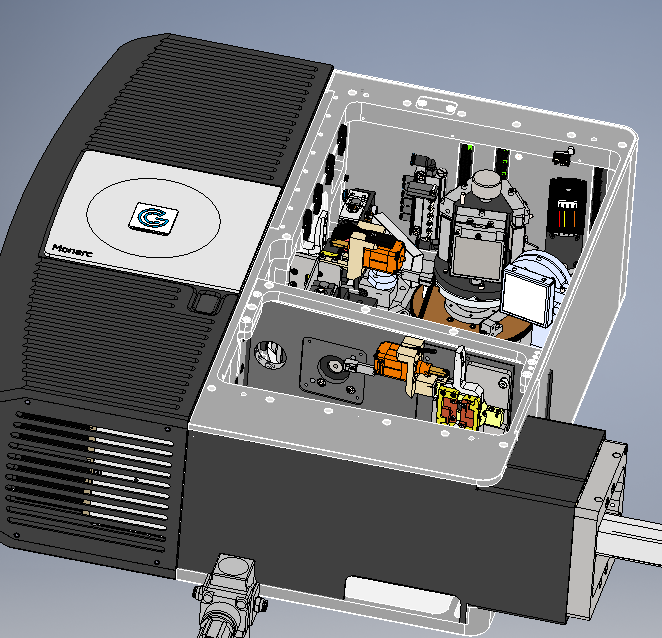

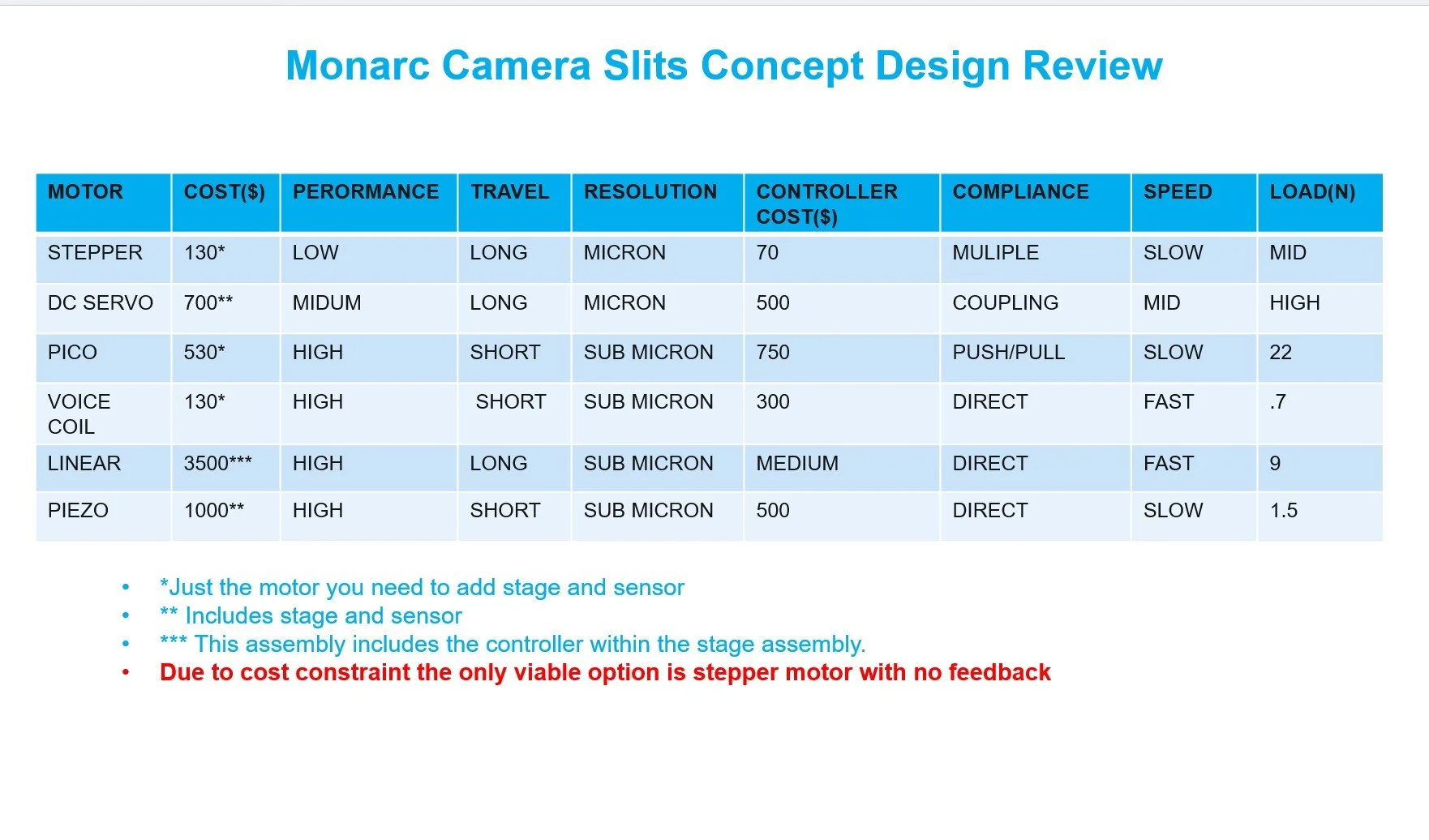

The primary challenge was to achieve precise, repeatable motion within a compact design envelope while maintaining alignment stability under thermal and mechanical variations., While keep the cost under $2000. Traditional mechanisms with bearings and joints introduce friction, hysteresis, and wear, which are unacceptable in high-resolution optical systems.

Design Solution

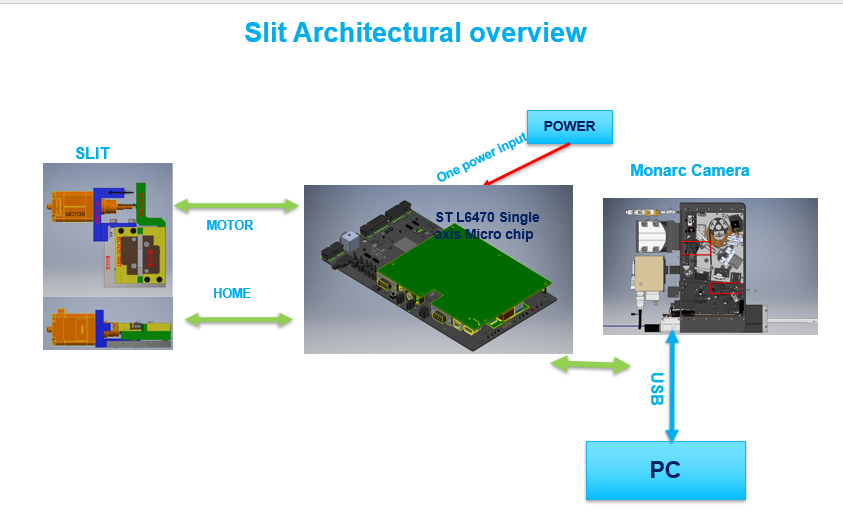

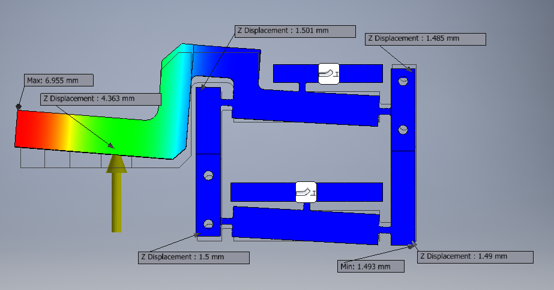

A flexure-based mechanism was developed to provide controlled motion through elastic deformation rather than sliding or rolling components. The design ensured:

Frictionless and backlash-free motion.
High positioning resolution.
Stable optical alignment.
Reduced part count and improved reliability.
Minimum cost achievable.

Flexure systems are widely used in precision engineering because they enable motion through material deformation, eliminating mechanical play and improving accuracy.
